扩展 ECharts 全局漫游功能

TLDR

本文探讨如何扩展 ECharts 的全局漫游功能。虽然 ECharts 通过 dataZoom 为笛卡尔坐标系图表提供了漫游功能，但关系型图表缺乏完整的全局漫游支持。我们将研究 ECharts 当前的单系列漫游实现，并开发一个解决方案来实现所有图表类型的全局漫游功能。

任务

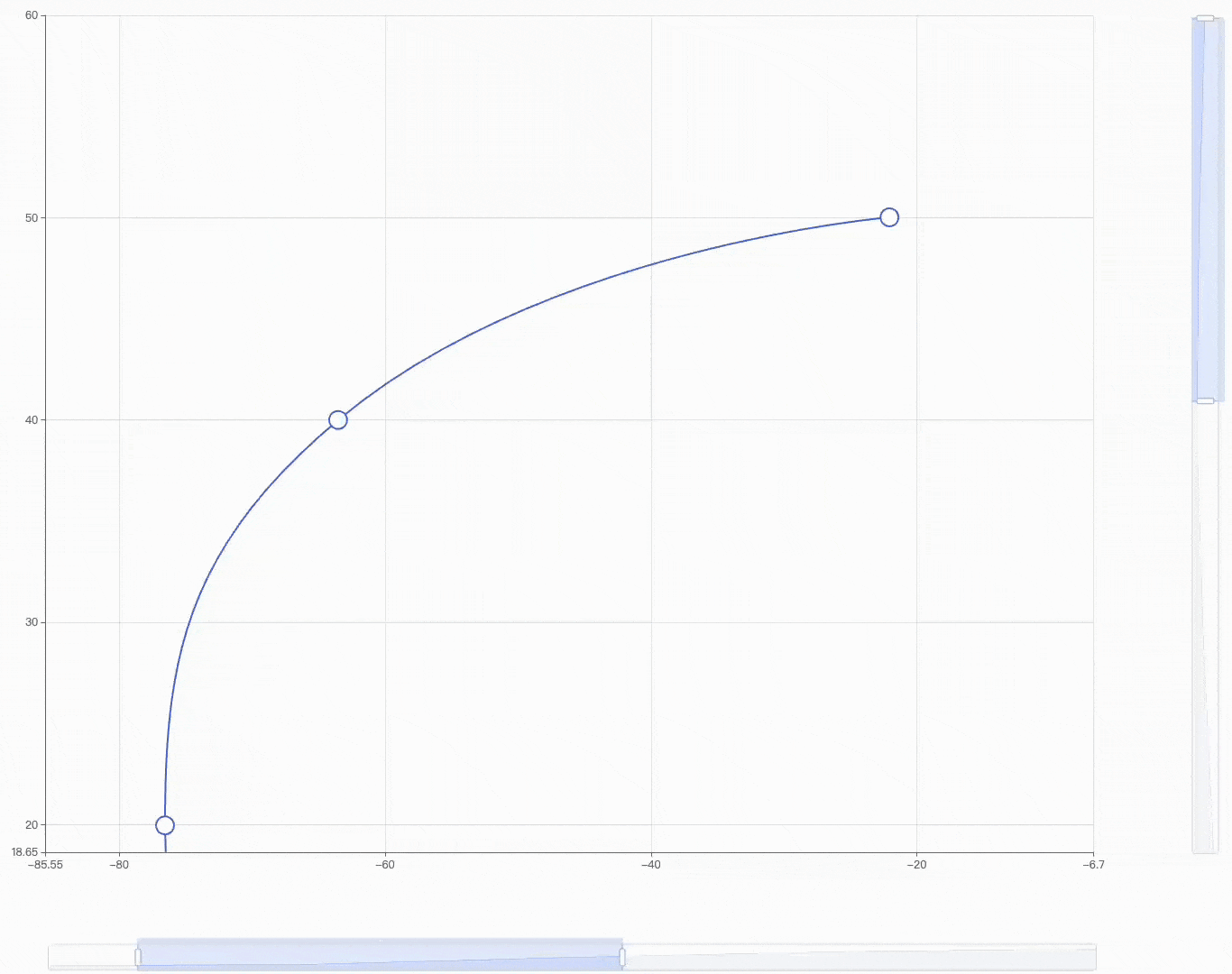

尽管 ECharts 通过其丰富的配置选项提供了数百种可视化功能，但一些常见功能，如漫游功能，仍然未被满足。在 ECharts 中，缩放和移动图表（以下统称为漫游）可以通过两种方式实现。对于使用笛卡尔坐标系的图表（如折线图和柱状图），ECharts 通过 dataZoom 组件实现了漫游功能。

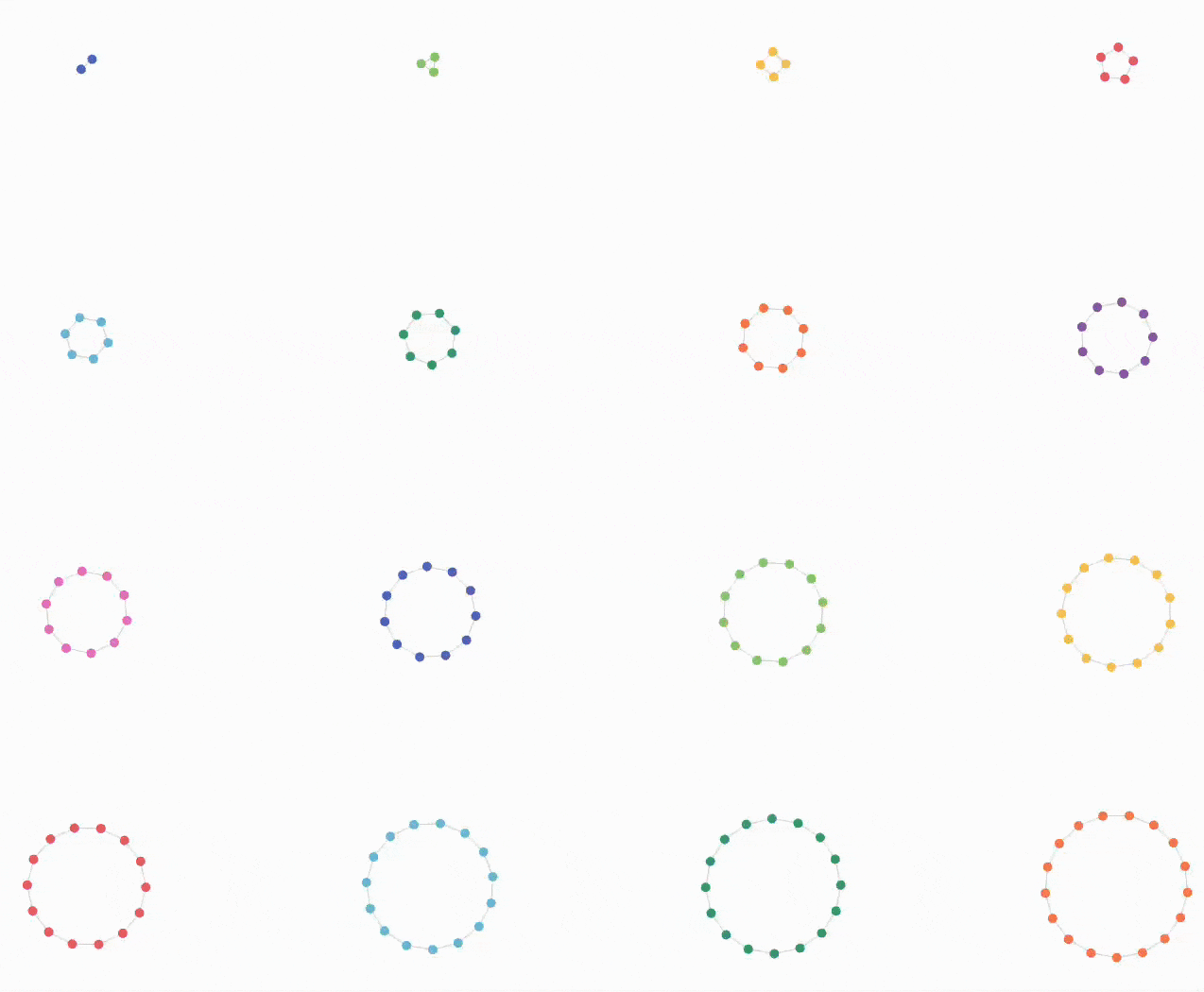

然而，对于关系型图表（如桑基图和旭日图——没有线条的关系图），全局漫游功能并未得到完全支持。目前，只在最常见的关系图（Graph）类型中实现了单系列漫游。

原始漫游解决方案

让我们简要了解 ECharts 如何在关系图中实现单系列漫游支持。

在这里，我们假设您已经阅读了文章 ECharts 概览，并对 ECharts 的基本结构有所了解。

图表将每个图表分为两个主要文件：模型（model）和视图（view）。视图文件负责渲染视觉显示、更新和事件绑定。在每个视图文件中，有一个用于收集和初始化各种变量的 init 函数，以及一个执行主要绘图操作和基本事件绑定的核心 render 函数。

// chart/graph/GraphView.ts

init(ecModel: GlobalModel, api: ExtensionAPI) {
    const symbolDraw = new SymbolDraw();
    const lineDraw = new LineDraw();
    const group = this.group;

    this._controller = new RoamController(api.getZr());
    this._controllerHost = {
        target: group
    } as RoamControllerHost;

    group.add(symbolDraw.group);
    group.add(lineDraw.group);

    this._symbolDraw = symbolDraw;
    this._lineDraw = lineDraw;

    this._firstRender = true;
}

render(seriesModel: GraphSeriesModel, ecModel: GlobalModel, api: ExtensionAPI) {

    // some render code
    this._updateController(seriesModel, ecModel, api);
    // ...
}

_updateController(
    seriesModel: GraphSeriesModel,
    ecModel: GlobalModel,
    api: ExtensionAPI
) {
    const controller = this._controller;
    const controllerHost = this._controllerHost;
    const group = this.group;

    controller.setPointerChecker(function (e, x, y) {
        const rect = group.getBoundingRect();
        rect.applyTransform(group.transform);
        return rect.contain(x, y)
            && !onIrrelevantElement(e, api, seriesModel);
    });

    if (!isViewCoordSys(seriesModel.coordinateSystem)) {
        controller.disable();
        return;
    }
    controller.enable(seriesModel.get('roam'));
    controllerHost.zoomLimit = seriesModel.get('scaleLimit');
    controllerHost.zoom = seriesModel.coordinateSystem.getZoom();

    controller
        .off('pan')
        .off('zoom')
        .on('pan', (e) => {
            roamHelper.updateViewOnPan(controllerHost, e.dx, e.dy);
            api.dispatchAction({
                seriesId: seriesModel.id,
                type: 'graphRoam',
                dx: e.dx,
                dy: e.dy
            });
        })
        .on('zoom', (e) => {
            roamHelper.updateViewOnZoom(controllerHost, e.scale, e.originX, e.originY);
            api.dispatchAction({
                seriesId: seriesModel.id,
                type: 'graphRoam',
                zoom: e.scale,
                originX: e.originX,
                originY: e.originY
            });
            this._updateNodeAndLinkScale();
            adjustEdge(seriesModel.getGraph(), getNodeGlobalScale(seriesModel));
            this._lineDraw.updateLayout();
            // Only update label layout on zoom
            api.updateLabelLayout();
        });
}

在图关系图系列中，平移和缩放功能主要分为 Pan 和 Zoom 事件，两者都由 roamHelper 实现。

// component/helper/RoamHelper.ts
import Element from 'zrender/src/Element';

interface ControllerHost {
  target: Element;
  zoom?: number;
  zoomLimit?: { min?: number; max?: number };
}

/**
 * For geo and graph.
 */
export function updateViewOnPan(
  controllerHost: ControllerHost,
  dx: number,
  dy: number
) {
  const target = controllerHost.target;
  target.x += dx;
  target.y += dy;
  target.dirty();
}

/**
 * For geo and graph.
 */
export function updateViewOnZoom(
  controllerHost: ControllerHost,
  zoomDelta: number,
  zoomX: number,
  zoomY: number
) {
  const target = controllerHost.target;
  const zoomLimit = controllerHost.zoomLimit;

  let newZoom = (controllerHost.zoom = controllerHost.zoom || 1);
  newZoom *= zoomDelta;
  if (zoomLimit) {
    const zoomMin = zoomLimit.min || 0;
    const zoomMax = zoomLimit.max || Infinity;
    newZoom = Math.max(Math.min(zoomMax, newZoom), zoomMin);
  }
  const zoomScale = newZoom / controllerHost.zoom;
  controllerHost.zoom = newZoom;
  // Keep the mouse center when scaling
  target.x -= (zoomX - target.x) * (zoomScale - 1);
  target.y -= (zoomY - target.y) * (zoomScale - 1);
  target.scaleX *= zoomScale;
  target.scaleY *= zoomScale;

  target.dirty();
}

roamHelper 的逻辑非常简单。它基于从鼠标事件接收到的变量，更新 ControllerHost 中收集的图形元素的世界坐标矩阵。绑定鼠标事件的对象和更新世界坐标的对象是一致的，这符合预期。

如果我们想要实现全局漫游功能，首先需要将 ControllerHost 中的目标图形元素替换为全局图形元素，这通常是一个包含所有图形的组对象。然后，我们需要监听整个画布的鼠标事件，并更新全局组的世界坐标矩阵。ECharts 内部的渲染引擎 Zrender 将自动将父元素坐标矩阵的变化应用到子元素。

扩展 ECharts

ECharts 提供了许多扩展接口。对于全局漫游，我们将其定义为一个组件，可以使用 ECharts 提供的 use API 进行注册。

全局漫游模型

在 Model 中，主要关注与数据相关的操作，通常包括定义对外暴露的配置选项和处理后续渲染所需的数据。全局漫游的主要逻辑位于 View 文件中，因此这里主要定义配置选项。

// component/roam/RoamModel.ts

export interface RoamOption extends ComponentOption, RoamOptionMixin {
  mainType?: 'roam';

  /**
   * Roam is designed for view rather than cartesian2d coordinates
   * Additional processing needed to make roam work with cartesian2d
   * while keeping consistent behavior across coordinate systems
   */
  adaptAxis?: boolean;

  /**
   * Zoom behavior varies significantly across devices
   * This ratio parameter helps normalize zoom sensitivity
   */
  zoomRatio?: number;

  panRatio?: number;
  /** Pan direction, defaults to 'xy' for bidirectional panning
   *
   * - 'xy': Pan in both directions simultaneously
   * - 'x': Pan only horizontally
   * - 'y': Pan only vertically
   * - 'x|y': Allow either horizontal or vertical panning, auto-detected
   */
  panDirection: 'x|y' | 'x' | 'y' | 'xy';

  // Whether to restrict roaming within canvas bounds, default true
  roamLimit?: boolean;

  // Disable horizontal panning, default false
  banPanX?: boolean;

  // Disable vertical panning, default false
  banPanY?: boolean;

  // Disable zooming, default false
  banZoom?: boolean;
}

class RoamModel<
  Opts extends RoamOption = RoamOption
> extends ComponentModel<Opts> {
  [x: string]: any;

  static type = 'roam';

  type = RoamModel.type;

  static defaultOption: RoamOption = {
    roam: true,
    zoom: 1,
    center: ['50%', '50%'],
    adaptAxis: false,
    panRatio: 1,
    panDirection: 'xy',
    zoomRatio: 1,
    roamLimit: true,
    banPanX: false,
    banPanY: false,
    banZoom: false,
  };
}

export default RoamModel;

全局漫游视图

// component/roam/RoamView.ts

init(ecModel: GlobalModel, api: ExtensionAPI) {
    this.ecModel = ecModel;
    this.api = api;
    this.__controller = new RoamController(api.getZr());
    this.__seriesControllerHosts = [];
}

render(roamModel: RoamModel, ecModel: GlobalModel, api: ExtensionAPI, payload: Payload): void {
  this.roamModel = roamModel;
  this.__initCenterAndZoom(payload);

  if (!this.__initRendered) {
    this.__initRendered = true;

    /**
     * Initialize event objects
     * Must be placed in render because group cannot be obtained in init
     */
    this.__seriesGroupArr = this.__getSeriesGroupArr();
    this.__axesGroupArr = this.__getAxesGroupArr();
    this.__seriesControllerHosts = this.__seriesGroupArr.map(
      d =>
        ({
          target: d,
          // Currently X and Y do not support independent scaling, so X scaling is treated as global scaling factor
          zoom: d.transform ? d.transform[0] : 1,
          zoomLimit: roamModel.get('scaleLimit')!
        } as unknown as ControllerHost)
    );
    this.__axesControllerHosts = this.__axesGroupArr.map(
      d =>
        ({
          target: d,
          zoom: d.transform ? d.transform[0] : 1,
          zoomLimit: roamModel.get('scaleLimit')!,
          axes: (d as any).__ecComponentInfo?.mainType
        } as unknown as ControllerHost)
    ) as AxesControllerHost[];
  }

  /**
   * Bind roam events
   */
  this.__controllerHandler(roamModel);
}


private __getSeriesGroupArr() {
    const zrIns = this.api.getZr();
    const { storage } = zrIns;
    const seriesGroupArr: graphic.Group[] = [];
    storage.getRoots().forEach(root => {
      const mainType = (root as any).__ecComponentInfo?.mainType ?? null;
      if (RoamView.seriesType.includes(mainType)) {
        seriesGroupArr.push(root as graphic.Group);
      }
    });
    return seriesGroupArr;
}

private __getAxesGroupArr() {
    const zrIns = this.api.getZr();
    const { storage } = zrIns;
    const axesGroupArr: graphic.Group[] = [];
    storage.getRoots().forEach(root => {
      const mainType = (root as any).__ecComponentInfo?.mainType ?? null;
      if (RoamView.axesType.includes(mainType)) {
        axesGroupArr.push(root as graphic.Group);
      }
    });
    return axesGroupArr;
}

请注意，与 ECharts 源代码不同，我们不在此处的 init 函数中收集图形元素。这是因为组件和图表之间通常存在网状依赖关系。ECharts 内部使用权重来确保被依赖的组件或图表不会在生命周期中后执行，这会导致依赖的组件或图表出现渲染异常。由于这涉及更深层次的源代码，我们依靠生命周期确保 Roam 最后运行，而不是使用原生的权重设置。这确保了 roam 始终能够收集画布上所有已初始化的图形元素。

确实，这个解决方案并不完美，但它可以用 20%的开发工作量解决 80%的问题。

对于更新世界坐标的核心部分，我们将其提取到一个通用的帮助器中，并根据各种场景将其划分为不同的帮助器。在最终应用更新时，每个类别应用其相应的帮助器来更新坐标。

坐标更新的整体逻辑保持不变，只是添加了一些配置选项并对某些组件进行了特殊处理。

例如，在蜂群图中，我们通过布局实现关系图和笛卡尔坐标系之间的交互，并使用不同类别的帮助器实现笛卡尔坐标系的缩放。这允许通过漫游组件进行统一漫游，而无需额外适配 DataZoom 组件。

// component/roam/roamHelper.ts
export function doUpdateSeriesViewOnPanAndZoom(
  controllerHost: ControllerHost,
  {
    dx = 0,
    dy = 0,
    zoomDelta = 1,
    zoomX = 0,
    zoomY = 0,
    dirty = true,
  }: {
    dx?: number;
    dy?: number;
    zoomDelta?: number;
    zoomX?: number;
    zoomY?: number;
    dirty?: boolean;
  },
  animation?: boolean | ElementAnimateConfig
) {
  const { target, zoomLimit } = controllerHost;

  // pan
  let x = target.x + dx;
  let y = target.y + dy;

  // zoom
  let { scaleX } = target;
  let { scaleY } = target;
  const originControllerHostZoom = controllerHost.zoom;
  if (typeof zoomDelta === 'number') {
    controllerHost.zoom = controllerHost.zoom || 1;
    let newZoom = controllerHost.zoom;
    newZoom *= zoomDelta;

    if (zoomLimit) {
      const zoomMin = zoomLimit.min || 0;
      const zoomMax = zoomLimit.max || Infinity;
      newZoom = Math.max(Math.min(zoomMax, newZoom), zoomMin);
    }
    const zoomScale = newZoom / controllerHost.zoom;
    controllerHost.zoom = newZoom;

    target.stopAnimation();

    // Keep the mouse center when scaling
    x -= (zoomX - target.x) * (zoomScale - 1);
    y -= (zoomY - target.y) * (zoomScale - 1);
    scaleX *= zoomScale;
    scaleY *= zoomScale;
  }

  const originX = target.x;
  const originY = target.y;
  const originScaleX = target.scaleX;
  const originScaleY = target.scaleY;

  if (!animation) {
    target.x = x;
    target.y = y;
    target.scaleX = scaleX;
    target.scaleY = scaleY;

    if (dirty) {
      target.dirty();
    }
  } else {
    target.animateTo(
      { x, y, scaleX, scaleY },
      animation === true ? {} : animation
    );
  }

  return () => {
    target.x = originX;
    target.y = originY;
    target.scaleX = originScaleX;
    target.scaleY = originScaleY;
    controllerHost.zoom = originControllerHostZoom;
  };
}

// component/roam/asexRoamHelper.ts
export function doUpdateAxesViewOnPanAndZoom(
  controllerHost: AxesControllerHost,
  {
    dx = 0,
    dy = 0,
    zoomDelta = 1,
    zoomX = 0,
    zoomY = 0,
    dirty = true,
  }: {
    dx?: number;
    dy?: number;
    zoomDelta?: number;
    zoomX?: number;
    zoomY?: number;
    dirty?: boolean;
  },
  animation?: boolean | ElementAnimateConfig
) {
  const { target, zoomLimit, axes } = controllerHost;
  // Store original zoom for restoration
  const originControllerHostZoom = controllerHost.zoom;
  // Calculate zoomScale
  controllerHost.zoom = controllerHost.zoom || 1;
  let newZoom = controllerHost.zoom;
  newZoom *= zoomDelta;
  if (zoomLimit) {
    const zoomMin = zoomLimit.min || 0;
    const zoomMax = zoomLimit.max || Infinity;
    newZoom = Math.max(Math.min(zoomMax, newZoom), zoomMin);
  }

  const zoomScale = newZoom / controllerHost.zoom;
  // Keep the mouse center when scaling
  controllerHost.zoom = newZoom;

  // Specify transform functions for different types of elements
  const zoomFnMap = {
    axisLine: getAxisLineZoomTransform,
    splitLine: getLineZoomTransform,
    tick: getLineZoomTransform,
    label: getLabelZoomTransform,
  };

  // Collect elements by category
  const elementArr: {
    type: 'axisLine' | 'splitLine' | 'tick' | 'label';
    el: GraphicType.Line | GraphicType.Text;
  }[] = [];

  // Collect various contents
  target.traverse((d) => {
    if (!d.anid) {
      return;
    }

    // Axis line
    if (d.anid === 'line') {
      elementArr.push({
        type: 'axisLine',
        el: d as unknown as GraphicType.Line,
      });
      return;
    }

    // Split lines and axis lines
    if (d.anid.includes('line')) {
      elementArr.push({
        type: 'splitLine',
        el: d as unknown as GraphicType.Line,
      });
      return;
    }

    // tick
    if (d.anid.includes('tick')) {
      elementArr.push({
        type: 'tick',
        el: d as unknown as GraphicType.Line,
      });
      return;
    }

    // label
    if (d.anid.includes('label')) {
      elementArr.push({
        type: 'label',
        el: d as unknown as GraphicType.Text,
      });
    }
  });

  // Record initial values
  const originTransform: {
    el: GraphicType.Line | GraphicType.Text;
    x: number;
    y: number;
    scaleX: number;
    scaleY: number;
  }[] = [];

  // Calculate transform variables for pan and zoom of different elements
  elementArr.forEach((d) => {
    const { type, el } = d;

    // Record original values
    originTransform.push({
      el,
      x: el.x,
      y: el.y,
      scaleX: el.scaleX,
      scaleY: el.scaleY,
    });

    // Calculate transforms to be applied
    const panTransform = getElementPanTransform(axes, dx, dy);
    const zoomTransform = zoomFnMap[type](
      el as any,
      zoomScale,
      zoomX,
      zoomY,
      axes
    );
    const transform = {
      x: panTransform.x + zoomTransform.x,
      y: panTransform.y + zoomTransform.y,
      scaleX: zoomTransform.scaleX,
      scaleY: zoomTransform.scaleY,
    };

    if (!animation) {
      el.x += transform.x;
      el.y += transform.y;
      el.scaleX *= transform.scaleX;
      el.scaleY *= transform.scaleY;
    } else {
      el.animateTo(transform, animation === true ? {} : animation);
    }
  });

  if (!animation && dirty) {
    target.dirty();
  }

  return () => {
    controllerHost.zoom = originControllerHostZoom;
    originTransform.forEach((d) => {
      const { el } = d;
      el.x = d.x;
      el.y = d.y;
      el.scaleX = d.scaleX;
      el.scaleY = d.scaleY;
    });
  };
}

function getElementPanTransform(
  axes: 'xAxis' | 'yAxis',
  dx: number,
  dy: number
) {
  return {
    x: axes === 'xAxis' ? dx : 0,
    y: axes === 'yAxis' ? dy : 0,
  };
}

function getAxisLineZoomTransform(
  axisLine: GraphicType.Line,
  zoomScale: number,
  zoomX: number,
  zoomY: number,
  axes: 'xAxis' | 'yAxis'
) {
  return {
    x: axes === 'xAxis' ? (axisLine.x - zoomX) * (zoomScale - 1) : 0,
    y: axes === 'yAxis' ? (axisLine.y - zoomY) * (zoomScale - 1) : 0,
    scaleX: axes === 'xAxis' ? zoomScale : 1,
    scaleY: axes === 'yAxis' ? zoomScale : 1,
  };
}

function getLineZoomTransform(
  splitLine: GraphicType.Line,
  zoomScale: number,
  zoomX: number,
  zoomY: number,
  axes: 'xAxis' | 'yAxis'
) {
  return {
    x:
      axes === 'xAxis'
        ? (splitLine.x + splitLine.shape.x1 - zoomX) * (zoomScale - 1)
        : 0,
    y:
      axes === 'yAxis'
        ? (splitLine.y + splitLine.shape.y1 - zoomY) * (zoomScale - 1)
        : 0,
    scaleX: 1,
    scaleY: 1,
  };
}

function getLabelZoomTransform(
  label: GraphicType.Text,
  zoomScale: number,
  zoomX: number,
  zoomY: number,
  axes: 'xAxis' | 'yAxis'
) {
  return {
    x: axes === 'xAxis' ? (label.x - zoomX) * (zoomScale - 1) : 0,
    y: axes === 'yAxis' ? (label.y - zoomY) * (zoomScale - 1) : 0,
    scaleX: 1,
    scaleY: 1,
  };
}

最终结果
