ECharts 形态过渡动画

TLDR

本文探讨 ECharts 如何实现不同形状之间的形态过渡动画。我们将研究源代码中的核心实现，将过程分解为关键步骤，包括路径转换、结构对齐和最佳旋转角度计算。通过这种分析，我们将了解 ECharts 如何在保持视觉连续性的同时实现平滑的形状变换。

引言

形态过渡动画是一种常见的动画效果，用于在不同形状之间平滑过渡，为用户提供柔和的视觉引导而不显得突兀。ECharts 也内置了这种效果，虽然与 GSAP 的过渡效果相比可能有一些不足，但它能满足大多数场景的动画需求。

以下内容需要对贝塞尔曲线有基本的了解。如果您不熟悉贝塞尔曲线，我强烈推荐观看下面这个优秀的贝塞尔曲线教程视频。

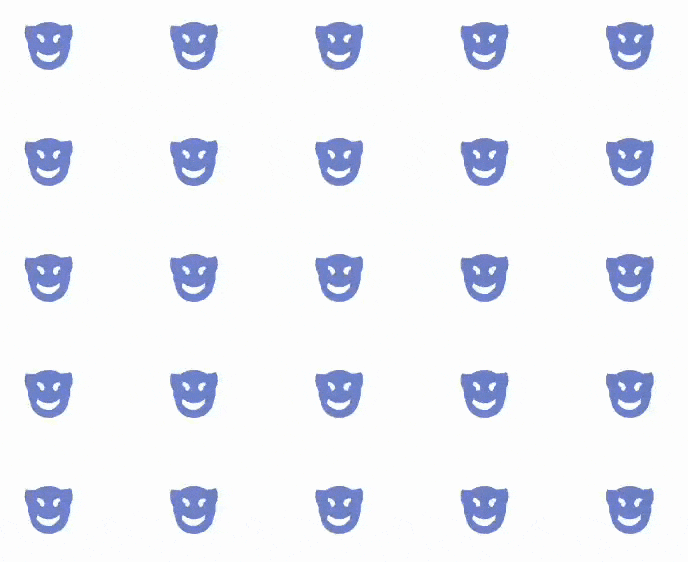

形状形态过渡

在 ECharts 中，使用 applyMorphAnimation 函数作为形态过渡的入口点。 https://github.com/apache/echarts/blob/master/src/animation/morphTransitionHelper.ts#L110

// src/animation/morphTransitionHelper.ts
export function applyMorphAnimation(
  from: DescendentPaths | DescendentPaths[],
  to: DescendentPaths | DescendentPaths[],
  divideShape: UniversalTransitionOption['divideShape'],
  seriesModel: SeriesModel,
  dataIndex: number,
  animateOtherProps: (
    fromIndividual: Path,
    toIndividual: Path,
    rawFrom: Path,
    rawTo: Path,
    animationCfg: ElementAnimateConfig
  ) => void
) {
  // ...
}

您可以看到"from"和"to"的类型可以是数组，这意味着 ECharts 内部处理一对一、多对一、一对多的变换，多对多则由另一个函数实现。在这里，我们将从最简单的一对一示例开始深入细节。

在 Zrender/src/tool/morphPath.ts 文件中，您可以看到形态过渡效果的实现。

处理变换的过程主要涉及三个步骤：

1. 将路径转换为三次贝塞尔曲线的数组。
2. 对齐子路径，确保贝塞尔曲线的两个数组具有相同数量的子路径，并且每个子路径包含相同的贝塞尔曲线。
3. 寻找最佳旋转角度，以避免过渡过程中出现扭曲和打结。

将路径转换为三次贝塞尔曲线的数组

请注意代码中作者关于"如何使用贝塞尔曲线拟合圆弧"的注释，因为这是一个重要问题。

export function pathToBezierCurves(path: PathProxy) {
  const data = path.data;
  const len = path.len();

  const bezierArrayGroups: number[][] = [];
  let currentSubpath: number[];

  let xi = 0;
  let yi = 0;
  let x0 = 0;
  let y0 = 0;

  function createNewSubpath(x: number, y: number) {
    // More than one M command
    if (currentSubpath && currentSubpath.length > 2) {
      bezierArrayGroups.push(currentSubpath);
    }
    currentSubpath = [x, y];
  }

  function addLine(x0: number, y0: number, x1: number, y1: number) {
    if (!(aroundEqual(x0, x1) && aroundEqual(y0, y1))) {
      currentSubpath.push(x0, y0, x1, y1, x1, y1);
    }
  }

  function addArc(
    startAngle: number,
    endAngle: number,
    cx: number,
    cy: number,
    rx: number,
    ry: number
  ) {
    // https://stackoverflow.com/questions/1734745/how-to-create-circle-with-b%C3%A9zier-curves
    const delta = Math.abs(endAngle - startAngle);
    const len = (Math.tan(delta / 4) * 4) / 3;
    const dir = endAngle < startAngle ? -1 : 1;

    const c1 = Math.cos(startAngle);
    const s1 = Math.sin(startAngle);
    const c2 = Math.cos(endAngle);
    const s2 = Math.sin(endAngle);

    const x1 = c1 * rx + cx;
    const y1 = s1 * ry + cy;

    const x4 = c2 * rx + cx;
    const y4 = s2 * ry + cy;

    const hx = rx * len * dir;
    const hy = ry * len * dir;
    currentSubpath.push(
      // Move control points on tangent.
      x1 - hx * s1,
      y1 + hy * c1,
      x4 + hx * s2,
      y4 - hy * c2,
      x4,
      y4
    );
  }

  let x1;
  let y1;
  let x2;
  let y2;

  for (let i = 0; i < len; ) {
    const cmd = data[i++];
    const isFirst = i === 1;

    if (isFirst) {
      // If the first command is L, C, Q
      // Then the previous point is the same as the first point of the drawing command
      // The first command is Arc, which will be handled separately later
      xi = data[i];
      yi = data[i + 1];

      x0 = xi;
      y0 = yi;

      if (cmd === CMD.L || cmd === CMD.C || cmd === CMD.Q) {
        // Start point
        currentSubpath = [x0, y0];
      }
    }

    switch (cmd) {
      case CMD.M:
        // moveTo command creates a new subpath and updates the new starting point
        // Used when calling closePath
        xi = x0 = data[i++];
        yi = y0 = data[i++];

        createNewSubpath(x0, y0);
        break;
      case CMD.L:
        x1 = data[i++];
        y1 = data[i++];
        addLine(xi, yi, x1, y1);
        xi = x1;
        yi = y1;
        break;
      case CMD.C:
        currentSubpath.push(
          data[i++],
          data[i++],
          data[i++],
          data[i++],
          (xi = data[i++]),
          (yi = data[i++])
        );
        break;
      case CMD.Q:
        x1 = data[i++];
        y1 = data[i++];
        x2 = data[i++];
        y2 = data[i++];
        currentSubpath.push(
          // Convert quadratic to cubic
          xi + (2 / 3) * (x1 - xi),
          yi + (2 / 3) * (y1 - yi),
          x2 + (2 / 3) * (x1 - x2),
          y2 + (2 / 3) * (y1 - y2),
          x2,
          y2
        );
        xi = x2;
        yi = y2;
        break;
      case CMD.A:
        const cx = data[i++];
        const cy = data[i++];
        const rx = data[i++];
        const ry = data[i++];
        const startAngle = data[i++];
        const endAngle = data[i++] + startAngle;

        // TODO Arc rotation
        i += 1;
        const anticlockwise = !data[i++];

        x1 = Math.cos(startAngle) * rx + cx;
        y1 = Math.sin(startAngle) * ry + cy;
        if (isFirst) {
          // Directly use arc command
          // First command starting point not yet defined
          x0 = x1;
          y0 = y1;
          createNewSubpath(x0, y0);
        } else {
          // Connect a line between current point to arc start point.
          addLine(xi, yi, x1, y1);
        }

        xi = Math.cos(endAngle) * rx + cx;
        yi = Math.sin(endAngle) * ry + cy;

        const step = ((anticlockwise ? -1 : 1) * Math.PI) / 2;

        for (
          let angle = startAngle;
          anticlockwise ? angle > endAngle : angle < endAngle;
          angle += step
        ) {
          const nextAngle = anticlockwise
            ? Math.max(angle + step, endAngle)
            : Math.min(angle + step, endAngle);
          addArc(angle, nextAngle, cx, cy, rx, ry);
        }

        break;
      case CMD.R:
        x0 = xi = data[i++];
        y0 = yi = data[i++];
        x1 = x0 + data[i++];
        y1 = y0 + data[i++];

        // rect is an individual path.
        createNewSubpath(x1, y0);
        addLine(x1, y0, x1, y1);
        addLine(x1, y1, x0, y1);
        addLine(x0, y1, x0, y0);
        addLine(x0, y0, x1, y0);
        break;
      case CMD.Z:
        currentSubpath && addLine(xi, yi, x0, y0);
        xi = x0;
        yi = y0;
        break;
    }
  }

  if (currentSubpath && currentSubpath.length > 2) {
    bezierArrayGroups.push(currentSubpath);
  }

  return bezierArrayGroups;
}

对齐子路径

处理三种情况：

• 当子路径 1 不存在时：
  • 使用 createSubpath 基于子路径 2 创建新的子路径
  • 保持子路径 2 不变
• 当子路径 2 不存在时：
  • 使用 createSubpath 基于子路径 1 创建新的子路径
  • 保持子路径 1 不变
• 当两个子路径都存在时：
  • 使用 alignSubpath 函数对齐两个子路径
  • 更新 lastSubpath1 和 lastSubpath2 以供后续使用

/**
 * Make two bezier arrays aligns on structure. To have better animation.
 *
 * It will:
 * Make two bezier arrays have same number of subpaths.
 * Make each subpath has equal number of bezier curves.
 *
 * array is the convert result of pathToBezierCurves.
 */
export function alignBezierCurves(array1: number[][], array2: number[][]) {
  let lastSubpath1;
  let lastSubpath2;

  let newArray1 = [];
  let newArray2 = [];

  for (let i = 0; i < Math.max(array1.length, array2.length); i++) {
    const subpath1 = array1[i];
    const subpath2 = array2[i];

    let newSubpath1;
    let newSubpath2;

    if (!subpath1) {
      newSubpath1 = createSubpath(lastSubpath1 || subpath2, subpath2);
      newSubpath2 = subpath2;
    } else if (!subpath2) {
      newSubpath2 = createSubpath(lastSubpath2 || subpath1, subpath1);
      newSubpath1 = subpath1;
    } else {
      [newSubpath1, newSubpath2] = alignSubpath(subpath1, subpath2);
      lastSubpath1 = newSubpath1;
      lastSubpath2 = newSubpath2;
    }

    newArray1.push(newSubpath1);
    newArray2.push(newSubpath2);
  }

  return [newArray1, newArray2];
}

寻找最佳旋转角度

• 通过计算质心对齐两个子路径。
• 使用 findBestRingOffset 寻找最佳起点匹配。
• 使用旋转搜索确定最小化变换距离的角度。
• 使用平方距离之和作为评价标准。

这与 GSAP 的动画方法几乎相同。您可以从视频中获取更多详细信息。

/**
 * If we interpolating between two bezier curve arrays.
 * It will have many broken effects during the transition.
 * So we try to apply an extra rotation which can make each bezier curve morph as small as possible.
 */
function findBestMorphingRotation(
  fromArr: number[][],
  toArr: number[][],
  searchAngleIteration: number,
  searchAngleRange: number
): MorphingData {
  const result = [];

  let fromNeedsReverse: boolean;

  for (let i = 0; i < fromArr.length; i++) {
    let fromSubpathBezier = fromArr[i];
    const toSubpathBezier = toArr[i];

    const fromCp = centroid(fromSubpathBezier);
    const toCp = centroid(toSubpathBezier);

    if (fromNeedsReverse == null) {
      // Reverse from array if two have different directions.
      // Determine the clockwise based on the first subpath.
      // Reverse all subpaths or not. Avoid winding rule changed.
      fromNeedsReverse = fromCp[2] < 0 !== toCp[2] < 0;
    }

    const newFromSubpathBezier: number[] = [];
    const newToSubpathBezier: number[] = [];
    let bestAngle = 0;
    let bestScore = Infinity;
    let tmpArr: number[] = [];

    const len = fromSubpathBezier.length;
    if (fromNeedsReverse) {
      // Make sure clockwise
      fromSubpathBezier = reverse(fromSubpathBezier);
    }
    const offset =
      findBestRingOffset(fromSubpathBezier, toSubpathBezier, fromCp, toCp) * 6;

    const len2 = len - 2;
    for (let k = 0; k < len2; k += 2) {
      // Not include the start point.
      const idx = ((offset + k) % len2) + 2;
      newFromSubpathBezier[k + 2] = fromSubpathBezier[idx] - fromCp[0];
      newFromSubpathBezier[k + 3] = fromSubpathBezier[idx + 1] - fromCp[1];
    }
    newFromSubpathBezier[0] = fromSubpathBezier[offset] - fromCp[0];
    newFromSubpathBezier[1] = fromSubpathBezier[offset + 1] - fromCp[1];

    if (searchAngleIteration > 0) {
      const step = searchAngleRange / searchAngleIteration;
      for (
        let angle = -searchAngleRange / 2;
        angle <= searchAngleRange / 2;
        angle += step
      ) {
        const sa = Math.sin(angle);
        const ca = Math.cos(angle);
        let score = 0;

        for (let k = 0; k < fromSubpathBezier.length; k += 2) {
          const x0 = newFromSubpathBezier[k];
          const y0 = newFromSubpathBezier[k + 1];
          const x1 = toSubpathBezier[k] - toCp[0];
          const y1 = toSubpathBezier[k + 1] - toCp[1];

          // Apply rotation on the target point.
          const newX1 = x1 * ca - y1 * sa;
          const newY1 = x1 * sa + y1 * ca;

          tmpArr[k] = newX1;
          tmpArr[k + 1] = newY1;

          const dx = newX1 - x0;
          const dy = newY1 - y0;

          // Use dot product to have min direction change.
          // const d = Math.sqrt(x0 * x0 + y0 * y0);
          // score += x0 * dx / d + y0 * dy / d;
          score += dx * dx + dy * dy;
        }

        if (score < bestScore) {
          bestScore = score;
          bestAngle = angle;
          // Copy.
          for (let m = 0; m < tmpArr.length; m++) {
            newToSubpathBezier[m] = tmpArr[m];
          }
        }
      }
    } else {
      for (let i = 0; i < len; i += 2) {
        newToSubpathBezier[i] = toSubpathBezier[i] - toCp[0];
        newToSubpathBezier[i + 1] = toSubpathBezier[i + 1] - toCp[1];
      }
    }

    result.push({
      from: newFromSubpathBezier,
      to: newToSubpathBezier,
      fromCp,
      toCp,
      rotation: -bestAngle,
    });
  }
  return result;
}

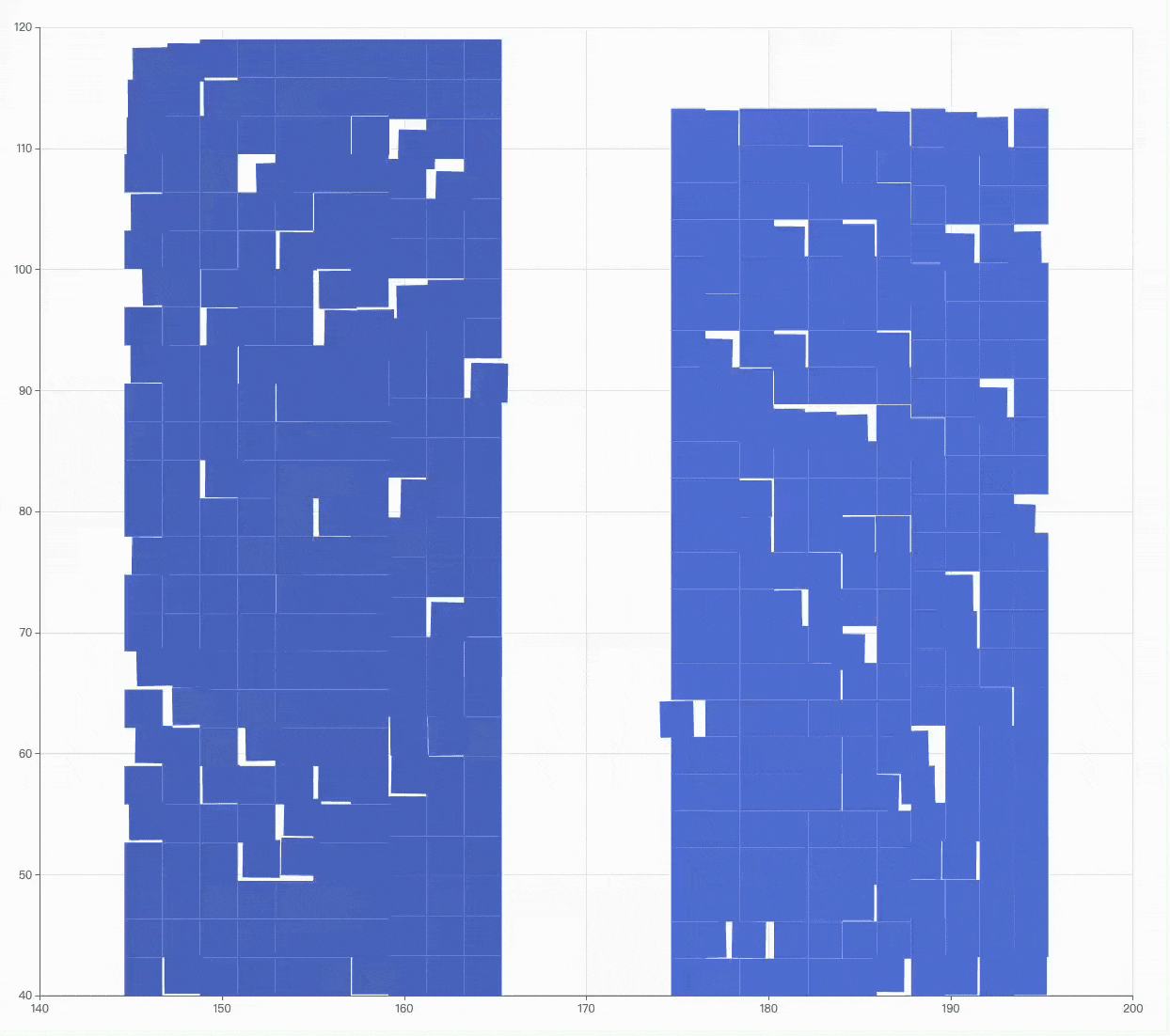

通用形态过渡

一对多和多对一过渡

探索了上述内容后，您可能对基本形态过渡有了一些了解。接下来，让我们回到 applyMorphAnimation 函数，看看 ECharts 如何处理一对多和多对一过渡。

export function applyMorphAnimation(
  from: DescendentPaths | DescendentPaths[],
  to: DescendentPaths | DescendentPaths[],
  divideShape: UniversalTransitionOption['divideShape'],
  seriesModel: SeriesModel,
  dataIndex: number,
  animateOtherProps: (
    fromIndividual: Path,
    toIndividual: Path,
    rawFrom: Path,
    rawTo: Path,
    animationCfg: ElementAnimateConfig
  ) => void
) {
  if (!from.length || !to.length) {
    return;
  }

  const updateAnimationCfg = getAnimationConfig(
    'update',
    seriesModel,
    dataIndex
  );
  if (!(updateAnimationCfg && updateAnimationCfg.duration > 0)) {
    return;
  }
  const animationDelay = (
    seriesModel.getModel(
      'universalTransition'
    ) as Model<UniversalTransitionOption>
  ).get('delay');

  const animationCfg = Object.assign(
    {
      // Need to setToFinal so the further calculation based on the style can be correct.
      // Like emphasis color.
      setToFinal: true,
    } as SeparateConfig,
    updateAnimationCfg
  );

  let many: DescendentPaths[];
  let one: DescendentPaths;
  if (isMultiple(from)) {
    // manyToOne
    many = from;
    one = to as DescendentPaths;
  }
  if (isMultiple(to)) {
    // oneToMany
    many = to;
    one = from as DescendentPaths;
  }

  function morphOneBatch(
    batch: MorphingBatch,
    fromIsMany: boolean,
    animateIndex: number,
    animateCount: number,
    forceManyOne?: boolean
  ) {
    const batchMany = batch.many;
    const batchOne = batch.one;
    if (batchMany.length === 1 && !forceManyOne) {
      // Is one to one
      const batchFrom: Path = fromIsMany ? batchMany[0] : batchOne;
      const batchTo: Path = fromIsMany ? batchOne : batchMany[0];

      if (isCombineMorphing(batchFrom as Path)) {
        // Keep doing combine animation.
        morphOneBatch(
          {
            many: [batchFrom as Path],
            one: batchTo as Path,
          },
          true,
          animateIndex,
          animateCount,
          true
        );
      } else {
        const individualAnimationCfg = animationDelay
          ? defaults(
              {
                delay: animationDelay(animateIndex, animateCount),
              } as ElementAnimateConfig,
              animationCfg
            )
          : animationCfg;
        morphPath(batchFrom, batchTo, individualAnimationCfg);
        animateOtherProps(
          batchFrom,
          batchTo,
          batchFrom,
          batchTo,
          individualAnimationCfg
        );
      }
    } else {
      const separateAnimationCfg = defaults(
        {
          dividePath: pathDividers[divideShape],
          individualDelay:
            animationDelay &&
            function (idx, count, fromPath, toPath) {
              return animationDelay(idx + animateIndex, animateCount);
            },
        } as SeparateConfig,
        animationCfg
      );

      const { fromIndividuals, toIndividuals } = fromIsMany
        ? combineMorph(batchMany, batchOne, separateAnimationCfg)
        : separateMorph(batchOne, batchMany, separateAnimationCfg);

      const count = fromIndividuals.length;
      for (let k = 0; k < count; k++) {
        const individualAnimationCfg = animationDelay
          ? defaults(
              {
                delay: animationDelay(k, count),
              } as ElementAnimateConfig,
              animationCfg
            )
          : animationCfg;
        animateOtherProps(
          fromIndividuals[k],
          toIndividuals[k],
          fromIsMany ? batchMany[k] : batch.one,
          fromIsMany ? batch.one : batchMany[k],
          individualAnimationCfg
        );
      }
    }
  }

  const fromIsMany = many
    ? many === from
    : // Is one to one. If the path number not match. also needs do merge and separate morphing.
      from.length > to.length;

  const morphBatches = many
    ? prepareMorphBatches(one, many)
    : prepareMorphBatches((fromIsMany ? to : from) as DescendentPaths, [
        (fromIsMany ? from : to) as DescendentPaths,
      ]);
  let animateCount = 0;
  for (let i = 0; i < morphBatches.length; i++) {
    animateCount += morphBatches[i].many.length;
  }
  let animateIndex = 0;
  for (let i = 0; i < morphBatches.length; i++) {
    morphOneBatch(morphBatches[i], fromIsMany, animateIndex, animateCount);
    animateIndex += morphBatches[i].many.length;
  }
}

interface MorphingBatch {
  one: Path;
  many: Path[];
}

function prepareMorphBatches(one: DescendentPaths, many: DescendentPaths[]) {
  const batches: MorphingBatch[] = [];
  const batchCount = one.length;
  for (let i = 0; i < batchCount; i++) {
    batches.push({
      one: one[i],
      many: [],
    });
  }

  for (let i = 0; i < many.length; i++) {
    const len = many[i].length;
    let k;
    for (k = 0; k < len; k++) {
      batches[k % batchCount].many.push(many[i][k]);
    }
  }

  let off = 0;
  // If one has more paths than each one of many. average them.
  for (let i = batchCount - 1; i >= 0; i--) {
    if (!batches[i].many.length) {
      const moveFrom = batches[off].many;
      if (moveFrom.length <= 1) {
        // Not enough
        // Start from the first one.
        if (off) {
          off = 0;
        } else {
          return batches;
        }
      }
      const len = moveFrom.length;
      const mid = Math.ceil(len / 2);
      batches[i].many = moveFrom.slice(mid, len);
      batches[off].many = moveFrom.slice(0, mid);

      off++;
    }
  }

  return batches;
}

这里的代码很多，可能需要足够的时间才能完全理解和消化，但主要步骤如下：

• 参数处理：格式化动画参数和转换中的参与者（from、to）。
• 分批处理：使用 prepareMorphBatches 函数将格式化的 from 和 to 分成批次。
• 为每个批次变形：使用 morphOneBatch 函数对每个批次执行变换。

上述代码用于过程控制，这意味着它不涉及低级计算代码，如矩阵或路径。这些低级操作在 Zrender 中实现。如果您感兴趣，可以在这里查看源代码：Zrender/morphPath.ts

提示

morphPath 文件包含一些最核心/底层的代码。我还没有完全掌握它，但我坚信如果您想要更好的形态过渡效果，这部分是至关重要的。

您可以清楚地看到，ECharts 已经在外部公开了动画参数，但仅限于源代码的应用层，即 Series/Component 层。它尚未在用户与之交互的 Options 中直接公开。这可能会降低应用门槛，使初学者能够以最少的努力使用 ECharts 的自定义包/模板。要更深入地自定义 ECharts 效果，您可以利用官方扩展 API 进行源代码级控制。

多对多过渡

多对多变换使用基于差异的方法进行动画排列，这很直观。例如，从散点图到堆叠柱状图的变形，如图所示。

我们期望形态变换前后的图形表示相同的数据集。通常，形态变换前后的图形元素数量是一致的，但有时可能会有显著变化，例如描绘[演化]时，数据维度在变换过程中随时间变化。这可能导致一些旧元素消失，新元素出现，而横跨两个时期的元素则相应地变形。

实际上，diff 是 ECharts 的核心动画机制。您可以在几乎每个系列视图文件的 render 函数中看到 diff相关 代码。每当您在现有 ECharts 实例上使用 setOption 时，如果新数据与现有数据具有相同的 ID，ECharts 将自动完成过渡动画。这是一个理想的设计。

关于 universalTransition，我建议查看源代码。
